Accurate temperature measurement is essential for maintaining product quality, process efficiency, regulatory compliance and operational safety in industrial processes. High performance, stable temperature sources are the solution for achieving optimal performance of temperature sensors and process instrumentation, by providing reference temperatures for checking and calibrating these devices. The GE Dry Block and Liquid Bath Temperature Calibrators provide solutions for testing temperature devices over a range of temperatures from -35°C to 650°C (- 30°F to 1200°F) with a choice of dry block and liquid bath configurations to accommodate virtually any type, shape and size of sensor.

LIQUIDTC 165 AND LIQUIDTC 255

These multi-purpose calibrators combine the portability of dry block calibrators with the flexibility of liquid immersion baths to enable the testing and calibration of virtually any shape and size of devices. The calibrators can be re- configured by the user to function as a liquid bath, as an infrared black body source and as a dry block calibrator with interchangeable inserts. The latest heating and electronic control technology, combined with continuous liquid agitation of the fluid bath, provide high accuracy and stability throughout the large homogeneous measuring zone. The calibrators are factory configured as liquid baths and are provided with a bath cover to hold up to 5 devices while reducing heat loss from the surface of the liquid medium. For transportation a leak-proof sealing cover is also provided as standard. Optionally the temperature calibrators can be configured with additional capabilities including interchangeable liquid baths, a black body source and dry block interchangeable inserts. Two models are available:

• LiquidTC 165 generates temperatures from Room Temperature (RT) to 165°C

• LiquidTC 255 generates temperatures from ambient to 255°C

• Temperature range from Room Temperature (RT to 255°C)

• Accuracy from ±0.2°C

• Stability 0.05°C

• Large bath for irregular and multiple devices

• Multi-purpose – liquid bath, black body source, dry block

• Interchangeable bath – simplifies fluid changes

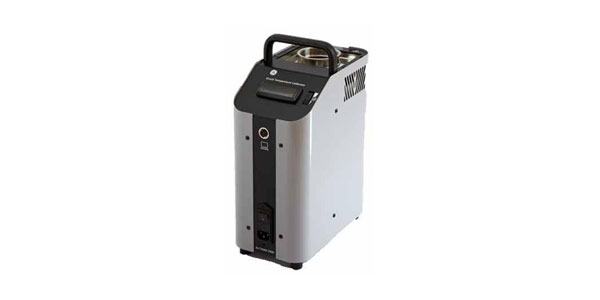

DRYTC 165 AND DRYTC 650

These dry block calibrators incorporate the latest metal block and electronic control technology and offer a choice of precision bored well inserts to accommodate a wide range of test devices. Two models are available

• DryTC 165 generates temperatures from Room Temperature (RT) to 165°C

• DryTC 650 generates temperatures from ambient to 650°C.

• Both models provide high accuracy, excellent set point stability and rapid heating and cooling times.

• Temperature range from Room Temperature (RT to 650°C)

• Accuracy from ±0.2°C

• Stability 0.05°C

• Rapid heating and cooling

• Light weight and robust for field use

• Choice of interchangeable well inserts

• Easy to set-up and use
