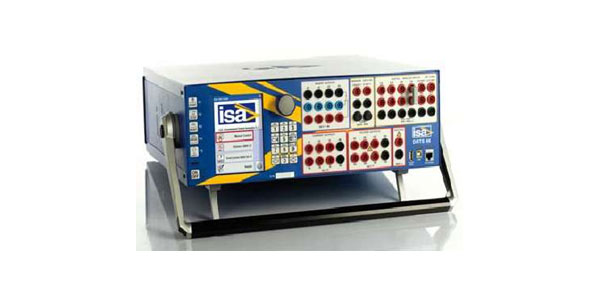

Automatic Relay Test Set (DRTS 66)

    Key Features

  • Manual control with color display and by laptop with TDMS software
  • Simultaneously available: 6 Current and 6 Voltage plus 1 battery simulator output
  • High current outputs: 6 x 32 A, 3 x 64 A, 1 x 128 A
  • High power outputs: 6 x 430 VA, 3 x 860 VA, 1 x 1000 VA
  • Voltage outputs: 6 x 300V at 100 VA
  • High accuracy outputs: better than 0.05%
  • IEC 61850 protocol interface. USB, Ethernet and Pen drive interface
  • IRIG-B interface for end-to-end tests

Automatic Relay Test Set (DRTS 64)

    Key Features

  • Manual control with color display and by laptop with TDMS software
  • Simultaneously available: 6 Current and 4 Voltage plus 1 battery simulator output
  • High current outputs: 6 x 32 A, 3 x 64 A, 1 x 128 A
  • High power outputs: 6 x 430 VA, 3 x 860 VA, 1 x 1000 VA
  • Voltage outputs: 4 x 300V at 100 VA
  • High accuracy outputs: better than 0.05%
  • IEC 61850 protocol interface. USB, Ethernet and Pen drive interface
  • IRIG-B interface for end-to-end tests

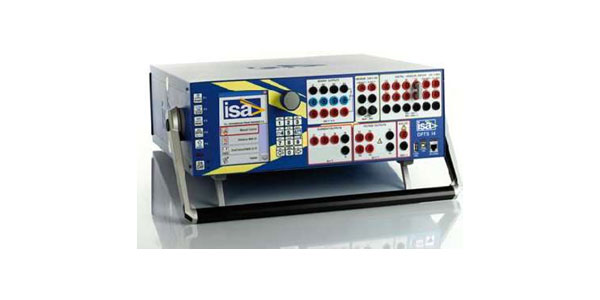

Automatic Relay Test Set (DRTS 34)

    Key Features

  • Manual control with color display and by laptop with TDMS software
  • Simultaneously available: 3 Current and 4 Voltage plus 1 battery simulator output
  • High current outputs: 3 x 32 A, 1 x 96 A
  • High power outputs: 3 x 420 VA, 1 x 1000 VA
  • Voltage outputs: 4 x 300V at 100 VA
  • High accuracy outputs: better than 0.05%
  • IEC 61850 protocol interface. USB, Ethernet and Pen drive interface
  • IRIG-B interface for end-to-end tests

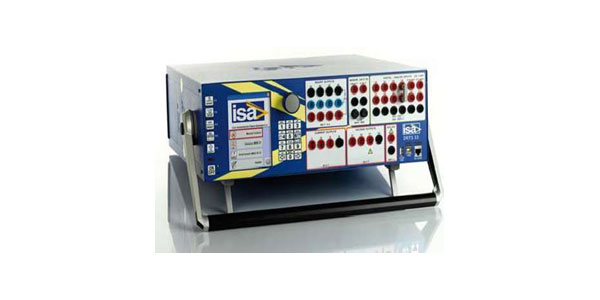

Automatic Relay Test Set (DRTS 33)

    Key Features

  • Local control with color display
  • Simultaneously available: 3 Current and 3 Voltage plus 1 battery simulator output
  • High current outputs: 3 x 32 A, 1 x 96 A
  • High power outputs: 3 x 430 VA, 1 x 900 VA
  • Voltage outputs: 3 x 300V at 100 VA
  • High accuracy outputs: better than 0.05%
  • IEC 61850 protocol interface. USB, Ethernet and Pen drive interface
  • IRIG-B interface for end-to-end tests
  • Optional PC control using TDMS - Advanced Test and Data Management software
