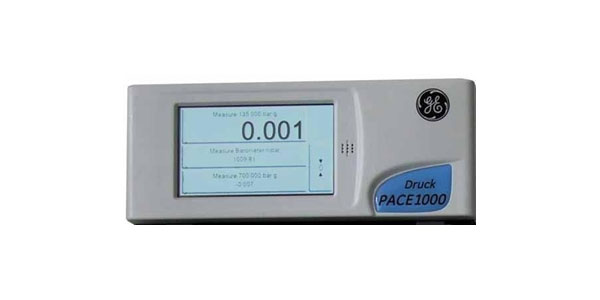

PACE 1000 Precision Pressure Indicator

A high precision Druck pressure indicator, designed for test bench, bench top and panel mount calibration, test and monitoring applications

    Features

  • Single or multiple pressure range configurations
  • Up to three pressures displayed simultaneously
  • Utilises GE’s new unique range of piezo-resistive & Resonant Pressure Sensor technology
  • Full scale pressure ranges up to 1000 bar (14500 psi/100 MPa)
  • Choice of precision up to 0.005% FS
  • Long term stability up to 0.01% Rdg per annum
  • Barometric reference option
  • Airfield Task as standard with barometric option: Display QFE, QFF or QNH in pressure units or as altitude in feet or meters
  • Negative gauge calibration included as standard
  • Data Logging as standard with on screen replay
  • Selectable numeric or graphic display
  • High resolution touch screen operation
  • Intuitive icon driven task menu structure
  • Switch Test/Analogue Output option
  • Switch Test/Voltage Free Contact option
  • Aeronautical option
  • Leak Test option
  • RS232, IEEE connectivity, Ethernet and USB as standard
  • Min/Max/Average display
  • Compatible with software packages
  • 28 selectable pressure units plus 4 user defined units
  • Various service support options available

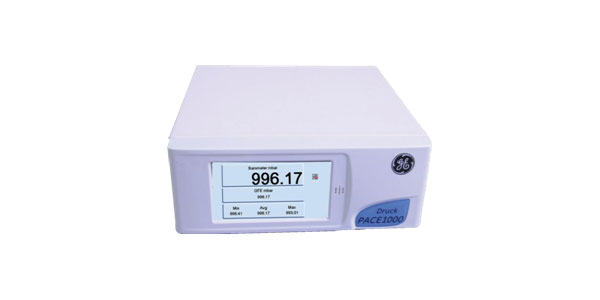

PACE 1001 Barometer Precision Barometer Indicator And Recorder

A high precision Druck indicator and recorder, designed for barometric monitoring in laboratories, airfields and other applications.

    Features

  • Utilises GE’s unique range of Resonant Pressure Sensor technology
  • Pressure ranges 750-1150 mbar (10.9-16.7 psi, 75-115 Kpa), absolute
  • Utilises GE’s new unique range of piezo-resistive & Resonant Pressure Sensor technology
  • Choice of precision up to 0.025 mbar/0.0003625 psi
  • Data Logging as standard with on screen replay
  • Selectable numeric or graphic display
  • High resolution touch screen operation
  • Intuitive icon driven task menu structure
  • Airfield Task as standard: Display QFE, QFF or QNH in pressure units or as altitude in feet or meters
  • Leak Test Option
  • Switch Test/Analogue Output option
  • Switch Test/Voltage Free Contact option
  • RS232, IEEE connectivity, Ethernet and USB as standard
  • Min/Max/Average display
  • Compatible with software packages
  • 28 selectable pressure units plus 4 user defined units
  • Various service support options available

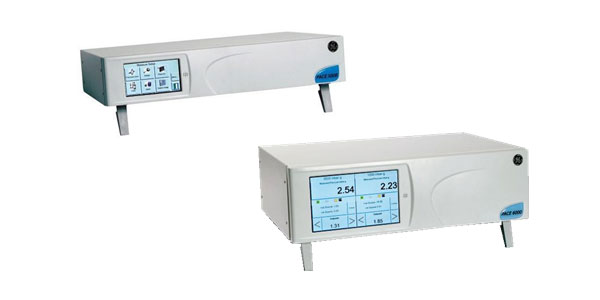

PACE Modular Pressure Controller PACE 5000 and PACE 6000

A new generation of high precision Druck pressure controller, designed for test bench, bench top and rack mount calibration, and automated test applications. Modularity increases user flexibility, reduces downtime and lowers overall cost of ownership.

    Features

  • Selection of Chassis and interchangeable control modules
  • Single, dual or auto range control module configurations
  • High speed pressure control
  • Up to 210 bar (3000 psi/21 MPa) gauge and absolute
  • Precision to 0.001% FS over calibrated temperature range
  • Accuracy 0.0016% Rdg (+0.0033% FS)
  • Long-term stability to 0.0025% FS per annum
  • Barometric reference option
  • Utilises GE’s new unique range of piezo-resistive and TERPS pressure sensor technology
  • 28 selectable pressure units and 4 user defined units
  • Switch Test, Leak Test, Test Program, Burst Test, Analogue output and Volt Free Contact options
  • Aeronautical option
  • Negative gauge calibration included as standard
  • High resolution colour touch screen operation
  • Intuitive icon task driven menu structure
  • Compatible with software packages
  • RS232, IEEE connectivity, Ethernet and USB as standard

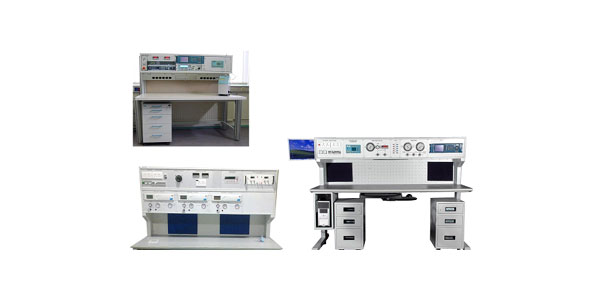

Test Bench

    Features

  • Modular calibration workstation
  • Enables calibration in a controlled environment
  • Pressure, temperature & electrical calibration system.
  • Integrated utilities provide pressure, vacuum and variable electrical supplies
  • High quality work table
  • Standard Models
  • Custom Built Models
