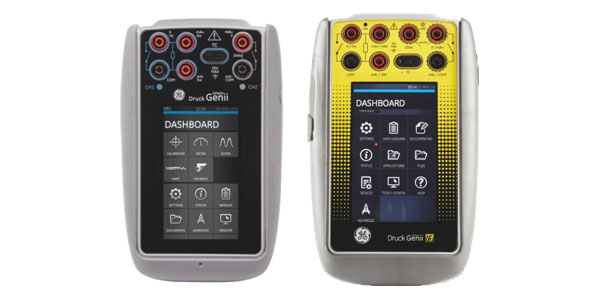

DPI620 Genii-IS is part of our Elite product range, which gives you state-of-the-art calibration, communication and data integration on the move. Featuring temperature, electrical, frequency and pressure calibration with HART®, Foundation Fieldbus and Profibus communications, the Elite range gives you fast, intelligent workflows on the move. Modular design gives you the capability of a full calibration lab, anywhere in the field.

Applications

• 3 tools in 1 – calibrator, test meter and HART® communicator

• Optional Foundation Fieldbus and Profibus communicator

• Easy to use including large colour screen and one touch menus

• Automates procedures, documents results and integrates with calibration software

• Best in class accuracy for pressure, electrical, temperature and frequency

• Modular: re-range in the field, configure by application, expand when needs change

• ATEX and IECEx approval for hazardous use

• Multi-function capabilities allows significant inventory reductions and simplifies training

New in Genii IS

• Genii interface and touch screen

• Temperature range extended: -10 to 50°C

• Improved battery management – exchange in hazardous areas, no tools required

• Independent battery charge indicator

• Improved daylight readability of display

• HART®, Foundation Fieldbus and Profibus communicator options

• Complete device description libraries and free updates

• Internal mA loop power and communicator power hubs

• Internal menu selected HART® loop resistor

Applications

• Petrochemical

• Chemical

• Oil & Gas

• Power

• Food

• Pharmaceuticals

Features

• A uniquely capable, re-rangeable and self contained pressure test system

• Advanced pressure generation

• 95% vacuum to 20 bar (300 psi) pneumatic

• 95% vacuum to 100 bar (1,500 psi) pneumatic

• 0 to 1000 bar (15,000 psi) hydraulic

• Stand alone replacements for hand pumps

• Bench top use as comparators

• Safe and Hazardous area Versions available

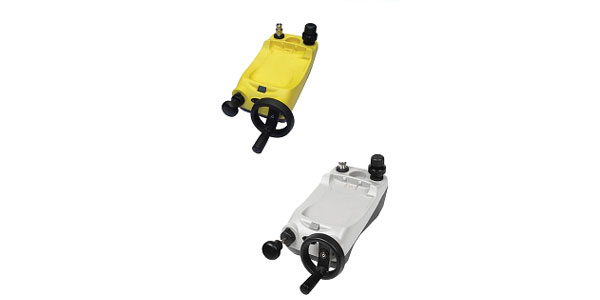

There are three pressure generation stations: the PV621, a pneumatic pressure generator for pressures 95% vacuum to 20 bar (300 psi); the PV622, a pneumatic pressure generator for pressures 95% vacuum to 100 bar (1,500 psi); and the PV623, a hydraulic pressure generator for pressures up to 1,000 bar (15,000 psi). Each pressure station is designed for stand-alone operation as a pressure generator and can replace conventional hand pumps to provide greater efficiency and ease of use. They can also be used on the workbench as comparators.

Combining any of the pressure stations with a PM620 pressure module and the DPI620 calibrator creates a uniquely capable, self-contained pressure calibrator
