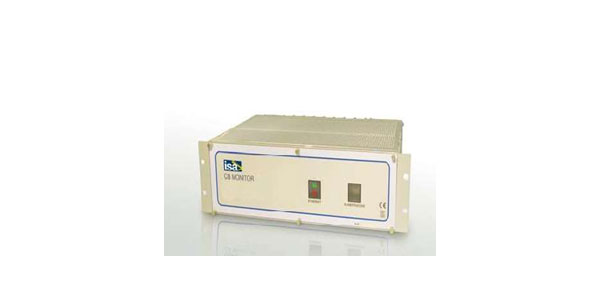

CB Monitor On Line Circuit Breaker Monitoring System

CB MONITOR for substation equipments is a cost-effective on line diagnostic system used to monitor MV and HV circuit breakers. CB MONITOR system can monitor up to 10 circuit breakers at the same time. The purpose of the Circuit Breaker Monitoring System is to highlight issues before these can cause an inefficiency in the system, thus allowing a far better management of condition based maintenace. CB MONITOR verifies continuously the following parameters:

    Key Features

  • Auxiliary contacts opening and closing me
  • Auxiliary contacts bouncing times
  • SF6 Density trend
  • Temperature
  • Accumulated fault current during arcing me (I2t)
  • Open and close current profiles
  • Mechanism operating time
  • Battery voltage
