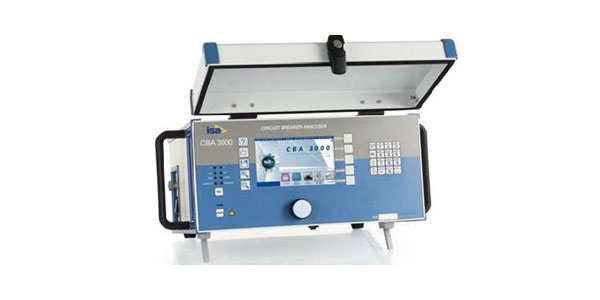

All In One Circuit Breaker Analyzer And Microohmmeter (CBA 3000 )

    Key Features

  • Faster: one single connect on set up to perform automatically all possible Circuit Breaker tests
  • Safer: Both Side Grounded facility without any additonal external boxes/modules. • 3/6/9 static and dynamic contact resistance measurement – 200A DC output each
  • First trip measurement three phase.
  • 16 or 24 fully user configurable Main/PIR and auxiliary input contacts. • 4 or 6 Open / Close coil commands.
  • 8 analog input measurements.• 3 analog linear/rotary transducers and 3 digital transducers inputs for travel/ speed analysis. • Minimum voltage trip coil test fully automatic. • On-screen control and test results evaluation.
  • PC Software suite TDMS for analysis, archiving and test report creation.

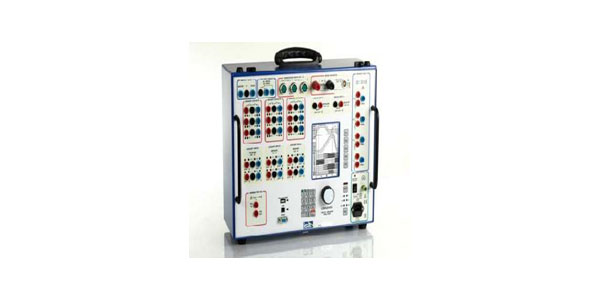

HV Circuit Breaker Analyzer And Microohmmeter (CBA 2000 )

    Key Features

  • Designed for the complete test of all circuit breakers
  • Up to 18 main and 18 resistive contact inputs
  • Built-in 200 A microOhmmeter - static and dynamic contact resistance measurement.
  • Motion and speed analyzer. Digital transducer for motion analysis. • Up to 4 trip/close coil controls. • 10 analog inputs
  • 12 auxiliary timing inputs. • Circuit Breaker test with both sides connected to ground (BSG option). • Minimum Trip Coil Test.
  • Analysis and result evaluation directly on the display.
  • USB and RS232 port.

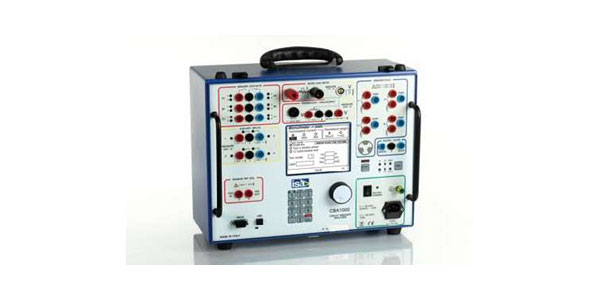

HV Circuit Breaker Analyzer And Microohmmeter (CBA 1000 )

    Key Features

  • Designed for the complete test of all circuit breakers
  • 6 main and 6 resistive contact inputs. • Up to 4 trip/close coil controls.
  • Built-in 200 A microOhmmeter - static and dynamic contact resistance measurement.
  • Motion and speed analyzer. Digital transducer for motion Analysis.
  • 7 analog inputs. • 4 auxiliary timing inputs.
  • Circuit Breaker test with two ends connected to ground (BSG option).
  • Minimum Trip Coil Test.
  • Analysis and result evaluation directly on the display.
  • USB and RS232 port.
